running aeon vllm on gx10/dgx-spark and build snake with it • walterra.dev

A while back I got the ASUS Ascent GX10 talking to pi via ds4. That was DeepSeek V4 Flash on DwarfStar. This evening I went the other direction and put another stack on the box: the aeon-vllm-ultimate container, which is a single image built from source for the GB10 / sm_121a and serves the whole AEON fleet — Gemma-4-26B, Qwen3.6-27B, Qwen3.6-35B-A3B — with DFlash speculative decoding, NVFP4 weights and an FP8 KV cache.

The goal was simple: get one of these models serving an OpenAI-compatible endpoint on the LAN, point pi at it, and see if a fully local model on my own hardware can do real coding work. Spoiler: it can, and it built me a Snake clone. But the road there included locking myself out of the machine, which is the part actually worth writing down.

What I was setting up

The recommended daily-driver recipe is the Qwen3.6-27B multimodal NVFP4-MTP body paired with a z-lab DFlash drafter and an FP8 KV cache. The container is genuinely a “pull and run” affair — no local build required, the heavy lifting (a source build for sm_121a, three carried-but-unmerged upstream PRs, the DFlash spec-decode stack) is already baked into the image.

I pulled the image, verified the version inside the container (0.25.0+aeon.sm121a.dflash), and grabbed the two model repos. Small gotcha: git-lfs isn’t installed on the host, but the container ships the hf CLI, so I just ran the downloads through the container into a mounted directory. Bonus: that sidesteps the symlink-into-HF-cache pitfall the README warns about, because hf download --local-dir writes real files. The body is ~27 GB, the drafter ~3.3 GB.

The part where I locked myself out

Here’s the mistake. When I launched the server I set --gpu-memory-utilization 0.85. On a discrete GPU that’s a perfectly reasonable “give vLLM most of the VRAM” value. I even talked myself into it: vLLM would be the sole GPU load, so why not go high?

The GX10 does not have discrete VRAM. The GB10 is a unified memory machine — one 119 GB LPDDR5X pool shared by the CPU and the GPU. So --gpu-memory-utilization 0.85 doesn’t mean “85% of some separate video memory bank,” it means “reserve ~101 GB of the machine’s only memory.” That starves the host OS.

What that looks like from the outside is genuinely confusing at first. The kernel stayed completely alive — ping was steady at a few milliseconds the whole time. But every userspace process that needed to fork just… stalled. SSH would accept the TCP connection on port 22 and then hang forever during the banner exchange, because sshd couldn’t spawn a login shell. vLLM never opened its port either. The box was up, reachable, and totally unusable.

To make it worse, I’d started the container with --restart unless-stopped. So even if the OOM killer eventually reaped it, Docker would just bring it back and re-thrash. This is the kind of config that survives reboots specifically to keep hurting you.

I couldn’t get a shell to fix it. I tried hammering SSH in a tight retry loop hoping to catch a window between an OOM-kill and the restart — 40 attempts, then 80 — but the container never actually died, it just sat there pinning memory during CUDA graph capture. No window ever opened.

In the end the only way out was a hard reset. But a hard reset with --restart unless-stopped set is its own trap: the container would auto-start on boot and re-lock the machine before I could stop it. So the recovery was a race — a ssh loop firing a one-shot command that, the instant it landed a session, would disable the restart policy and stop every container in one go:

CMD='for c in $(docker ps -aq); do docker update --restart=no $c; done;
     docker stop -t 0 $(docker ps -q); echo ALLSTOPPED'
for i in $(seq 1 300); do
  out=$(ssh -o ConnectTimeout=5 -o BatchMode=yes gx10 "$CMD" 2>&1)
  echo "$out" | grep -q ALLSTOPPED && { echo "caught on $i"; break; }
  sleep 3
done

It landed on attempt 13, right in the early-boot window before Docker had fully wound the container back up. Machine recovered, 115 GB free, all restart policies set to no. Crisis over.

Doing it right

The fix is almost boring: the vendor quickstart uses --gpu-memory-utilization 0.60 for exactly this reason, and the README explicitly says keep it ≤ 0.88 on a Spark. I relaunched with 0.60, dropped --max-model-len from 229376 to a saner 131072 for the first boot, and set --restart no until I’d actually seen it come up healthy.

This time SSH stayed responsive throughout — 44 to 73 GB free during the whole boot and autotune. The first cold boot is slow (~13–16 minutes) because torch.compile plus the FlashInfer fp4_gemm autotuning has to run, but I mounted a persistent cache volume so subsequent boots should warm up in a couple of minutes.

The serve command that actually works:

docker run -d --name aeon-vllm --gpus all --ipc=host --shm-size=16g --net=host \
  -e VLLM_USE_FLASHINFER_SAMPLER=1 \
  -v $HOME/vllm-models/body:/model:ro \
  -v $HOME/vllm-models/drafter:/drafter:ro \
  -v $HOME/vllm-cache:/root/.cache/vllm \
  --entrypoint vllm ghcr.io/aeon-7/aeon-vllm-ultimate:latest \
  serve /model --port 8001 \
    --served-model-name aeon aeon-fast aeon-deep aeon-ultimate \
    --quantization modelopt --kv-cache-dtype fp8_e4m3 \
    --attention-backend TRITON_ATTN \
    --max-model-len 131072 --gpu-memory-utilization 0.60 \
    --enable-chunked-prefill --enable-prefix-caching \
    --reasoning-parser qwen3 --tool-call-parser qwen3_coder --enable-auto-tool-choice \
    --speculative-config '{"method":"dflash","model":"/drafter","num_speculative_tokens":12,"attention_backend":"TRITON_ATTN"}' \
    --trust-remote-code

I put it on :8001 deliberately so it doesn’t collide with ds4’s :8000. It reports a KV cache of ~515k tokens and about 3.9x concurrency at the 131k context length. One small thing worth knowing: because --kv-cache-dtype is FP8 here rather than NVFP4 — DFlash is non-causal and NVFP4 KV isn’t compatible with it on sm_121a today — you trade the ~3x KV-capacity trick for the DFlash throughput win. That’s the intended pairing for this recipe.

Wiring it into pi

pi reads custom providers from ~/.pi/agent/models.json, and I already had ds4 and a couple of MLX entries in there. Adding the vLLM endpoint was a matter of another provider block:

{
  "aeon": {
    "name": "AEON vLLM (gx10)",
    "baseUrl": "http://<ip>>:8001/v1",
    "api": "openai-completions",
    "apiKey": "aeon-local",
    "compat": {
      "supportsDeveloperRole": false,
      "supportsReasoningEffort": false,
      "maxTokensField": "max_tokens",
      "supportsStrictMode": false,
      "thinkingFormat": "qwen-chat-template"
    },
    "models": [
      {
        "id": "aeon",
        "name": "Qwen3.6-27B AEON (gx10 vLLM)",
        "reasoning": true,
        "input": ["text", "image"],
        "contextWindow": 131072,
        "maxTokens": 32768,
        "cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 }
      }
    ]
  }
}

The setting that took a moment of thought was thinkingFormat. The server runs with a --reasoning-parser qwen3, which means the chain-of-thought comes back in a separate reasoning field and content stays null until the model closes the think block. This tripped me up during the smoke test — a short max_tokens got entirely consumed by thinking, so content was null with finish_reason: length, and it looked like the model wasn’t answering. It was; it just hadn’t stopped thinking yet.

The right knob is thinkingFormat: "qwen-chat-template", which tells pi to control thinking via chat_template_kwargs.enable_thinking — the same mechanism I confirmed by hand (enable_thinking:false gives you a direct answer). apiKey is a dummy string; the server is keyless, but pi needs auth to be present before it will list a model.

pi --list-models | rg aeon showed it, and a quick non-interactive run confirmed the round trip:

pi --model aeon/aeon -p "Reply with exactly: gx10 aeon online"
# -> gx10 aeon online

Snake

With the plumbing done, the actual test: I asked pi, running entirely against the local Qwen3.6-27B on the GX10, to build a Snake clone. It produced a single self-contained snake.html — a Nokia-style green-LCD Snake, complete with a phone-body CSS frame, pixel font, and working game loop, in one file. It runs.

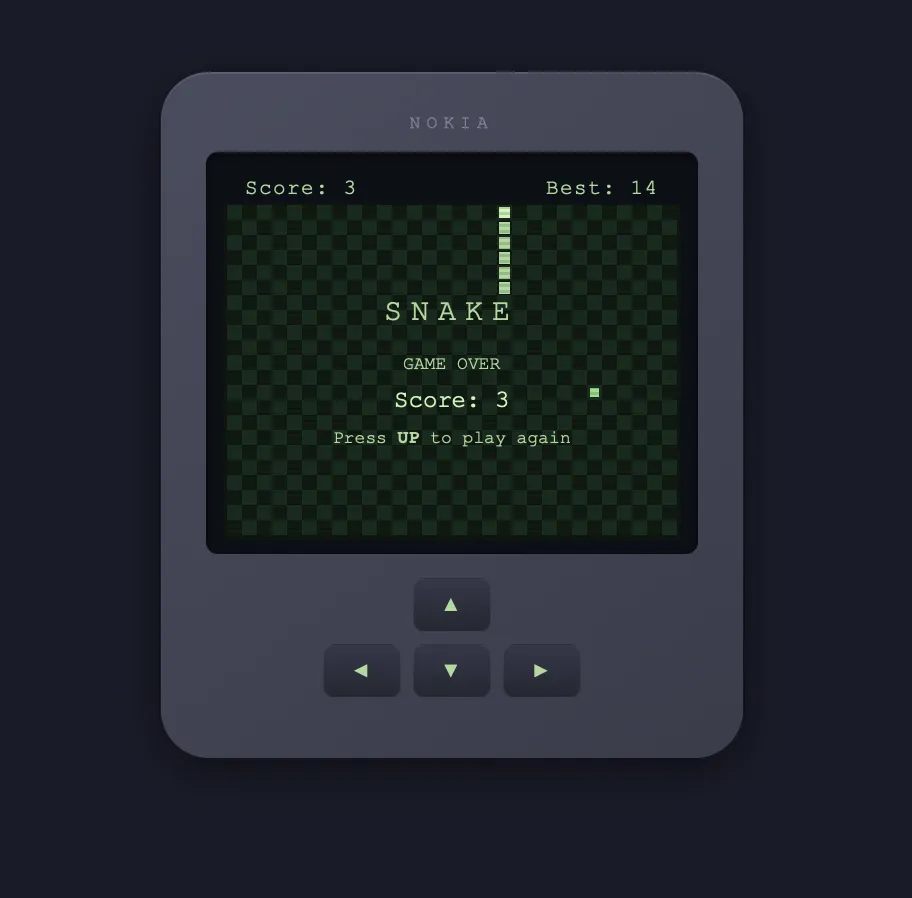

Nokia-style Snake clone rendered in the browser, with a green LCD screen inside a CSS phone body, generated by the local Qwen3.6-27B model on the GX10 No cloud model in the loop, no API bill, just a 27B model on a small black box in the utility room drafting tokens with DFlash and a Mac sending it prompts over the LAN.

And because this body is the multimodal NVFP4-MTP checkpoint, I could close the loop: I fed the screenshot above back to the same local model and asked it to describe what it saw. It nailed it — the model that wrote the game also read its own rendered game-over screen:

observation: game-over state rendered correctly

details:
 - Phone shell with rounded corners, "NOKIA" brand label at top
 - LCD screen shows game-over overlay: "SNAKE", "GAME OVER", "Score: 3", "Press UP to play
   again"
 - Background grid still visible with the snake (vertical, ~6 segments, right edge of screen)
   and food (single pixel, lower right)
 - Score bar: Score: 3, Best: 14
 - Keypad with 4 directional buttons (▲ ◄ ▼ ►) visible below screen
 - Dark background behind the phone

The game rendered correctly through game-over state. High score (14) was previously saved,
current run scored 3. The snake appears to have been moving upward when it died.

That’s the whole point of this exercise for me. The ds4 setup proved the GX10 could serve a model to pi; this one proves it can serve a coding-capable, image-reading one well enough to one-shot a small working app and then critique its own output.

A quick throughput benchmark

Before trusting the box for real work I wanted a rough tokens-per-second number — pure performance, not answer quality. Handily, vllm bench serve ships inside the container, so there’s nothing to install; it drives load against the running server and prints the standard metrics: output throughput, TTFT (time to first token), TPOT (time per output token) and ITL (inter-token latency), plus — because this build does speculative decoding — DFlash acceptance stats.

I ran single-stream (--max-concurrency 1), which gives the clean decode-speed headline number. First try used the built-in random dataset:

# random 1024-in / 512-out, 20 prompts, concurrency 1
Output token throughput:  18.19 tok/s
TPOT (p50):               52.9 ms
DFlash acceptance:        14.1%

18 tok/s looked low against the vendor’s published ~38–56 tok/s, and the acceptance rate explained why: random tokens are the worst possible case for speculative decoding. The little DFlash drafter can’t predict the continuation of noise, so almost nothing it drafts gets accepted (14%), and you’re left paying near-raw decode cost. It’s a classic benchmarking trap — a synthetic dataset that quietly defeats the exact feature you’re trying to measure.

So I re-ran on ShareGPT, i.e. real conversational prompts, which is what the vendor benchmarks against too:

# ShareGPT, 20 prompts, concurrency 1
Output token throughput:  23.64 tok/s
TTFT (p50):               334 ms
TPOT (p50):               37.7 ms
DFlash acceptance:        20.9%  (accept length 3.51)
  pos0 73% → pos11 3%

Realistic prompts lift acceptance from 14% to 21% and pull TPOT down from ~53 ms to ~38 ms — a ~30% single-stream speedup purely from the drafter landing more tokens. The per-position acceptance curve tells the story: position 0 accepts 73% of the time, then it decays as the drafter tries to guess further ahead. That’s exactly the shape you expect from DFlash, and it’s why the effective speed is so workload-dependent.

A few honest caveats on these numbers: ShareGPT is general chat, so it sits below the vendor’s coding/extraction category numbers (those prompts are far more predictable and draft better); 20 prompts is a smoke-test sample, not a rigorous run; and this is single-stream only — the interesting throughput story is the 1→64 concurrency sweep, which is a follow-up. But as a sanity check it’s enough: ~24 tok/s single-stream on real prompts, sub-350 ms to first token, no failures.

Takeaways

Unified memory is not VRAM. The single biggest lesson. On a GB10, --gpu-memory-utilization carves out of the same pool the OS lives in. 0.85 is a discrete-GPU habit that will lock you out of a Spark. Stay at 0.60 unless you’ve measured the headroom.
--restart unless-stopped before you’ve validated a config is a footgun. If the config wedges the host, it wedges it again on every boot. Validate with --restart no first, promote later.
A live kernel with dead userspace is a memory-pressure signature. Ping works, SSH hangs at banner exchange, service ports never open — that’s fork starvation, not a network problem.
The qwen3 reasoning parser means content can legitimately be null while the model thinks. Give it token headroom or turn thinking off; don’t assume it’s broken.

Next up: promote the server to auto-restart now that the config is proven, maybe raise gpu-mem-util toward 0.75 since vLLM is the dominant load, and try the bigger 35B-A3B model on the same image to see how it holds up for longer agent sessions.
